12G-SDI Fiber Optic Extender

CB-1120-TX / RX

CanaBridge Fiber Optic Extender: CB-1120-TX/RX is a set of transmitter and receiver over a single-mode LC simplex fiber optic cable. This kit will offer an affordable solution that extends 12G-SDI signal with audio and metadata up to 10km. In addition, an extra SDI loop out and dual SDI outputs are available. Simplest and smartest solution for 12G/6G/3G/HD/SD-SDI applications.
Features & Benefits
  • 12G/6G/3G-SDI input & loopout on transmitter
  • Dual 12G-SDI outputs on receiver
  • Supports up to 12G bandwidth
  • SDI input automatic switching SD, HD, 3G, 6G, 12G-SDI
  • 10km transmission distance
  • SFP/ LC Fiber transmitter & receiver
  • SDI equalization and re-clocking
  • USB power supply
  • The CB-1120 is a transmitter/receiver kit supporting single-mode LC simplex fiber extententions up to 10km. It is a miniture-style extention solution that supports all SDI formats resolutions up to 4K60p (Max. bandwith:12Gbps) with audio and metadata.
Technical Information
Connections Transmitter SDI Video Input 1×SD/HD/3G/6G/12G-SDI (75Ω BNC)
Transmitter SDI Loop Output 1×SD/HD/3G/6G/12G-SDI (75Ω BNC)
Transmitter Fiber Optical Output SFP module(LC)×1
Receiver Fiber Optical Input SFP module(LC)×1
Receiver SDI Video Output 2×SD/HD/3G/6G/12G-SDI (75Ω BNC)
Functions and Standards Optical Fiber Module SFP module: Hot-pluggable
Connector style: LC
Fiber type: single-mode
Optical wavelength: 1310nm
Max: bandwidth: 12Gbps
Optical transmit power: -6~-2dBm
Receiver sensitivity: -10dBm (Max)
Single-mode Max. Distance 10km(12.5 miles) for 12G(4K60p)
SDI Standard SMPTE ST 259,
SMPTE ST 292-1,
SMPTE ST 2081-1, ST 2082-1
Functions and Standards SDI Auto Switching SD/HD/3G/6G/12G-SDI on input
SDI Video Rate SD/HD/3G/6G/12G-SDI
SDI Equalization and Re-clocking Yes
SDI Audio Supports 32/16 channels embedded
Power Power Micro USB
Power Consumption 2.0W (Max)
Voltage Range USB 3.3-5.5V
Physical Specifications Dimension 72.4×41×24.6mm
Net Weight Transmitter: 115g, Receiver: 115g
Gross Weight 960g
Environmental Specifications Operating Temperature 0~60 deg C
Storage Temperature -30~70 deg C
Relative Humidity 0%~90% non-condensing

*Information in this document is subject to change without notice.

Related Products

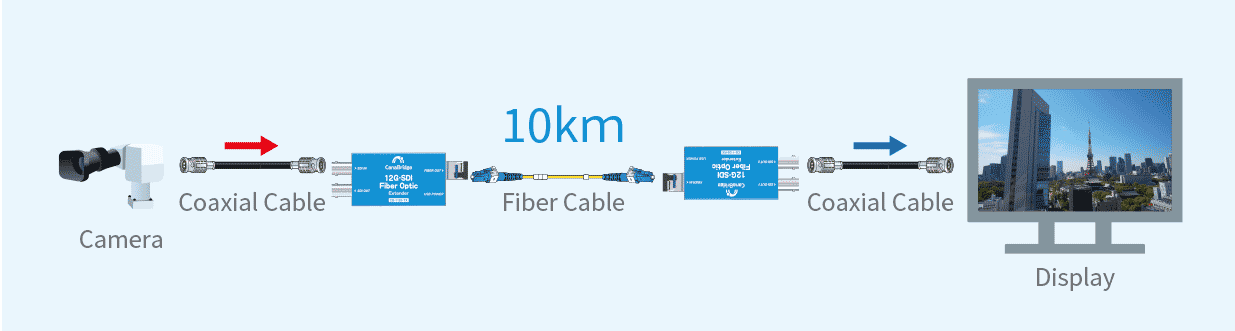

Typical application
