1×2 12G-SDI Signal Repeater

CB-8120

The CB-8120 is a miniature 1×2 12G-SDI repeater.The SD/HD/3G/6G/12G-SDI input signal is automatically detected. It features cable equalization and re-clocking. It also supports ASI signal on both output ports.
Features & Benefits
  • Input : 1 × 12G-SDI, Output : 2 × 12G-SDI
  • Automatically detects SD, HD, 3G, 6G and 12G-SDI
  • Support DVB-ASI signal
  • Automatic cable equalization and signal retiming
  • Pass all ancillary data and embedded audio
  • 3.3-5.5V micro USB power
  • Detachable bracket design for wall mounting
Technical Information
Connections SDI Video Input 1×SD/HD/3G/6G/12G-SDI (75Ω BNC)
SDI Video Output 2×SD/HD/3G/6G/12G-SDI (75Ω BNC)
Micro USB Power
Power LED Power indicator
SDI LED SDI input signal indicator
Functions and Standards SDI Video Rate SD/HD/3G/6G/12G-SDI
SDI Auto Switching Automatically detects SD, HD, 3G, 6G and 12G-SDI
SDI Standard SMPTE ST 259, SMPTE ST 292-1, SMPTE ST 424, SMPTE ST-2081-1, SMPTE ST-2082-2, DVB-ASI
Power Power Micro USB
Voltage Range USB 3.3-5.5V
Power Consumption 1.0W (Max)
Physical Specifications Dimension 72.4×41×24.6mm
Net Weight 110g
Gross Weight 470g
Environmental Specifications Operating Temperature 0~60 deg C
Storage Temperature -30~70 deg C
Relative Humidity 0%~90% non-condensing

*Information in this document is subject to change without notice.

Related Products
CANARE 75Ω Coaxial Cable
75Ω Coaxial Cable
CANARE 75Ω BNC Crimp Plugs
75Ω BNC Crimp Plugs
CANARE BNC Cable Assemblie
BNC Cable

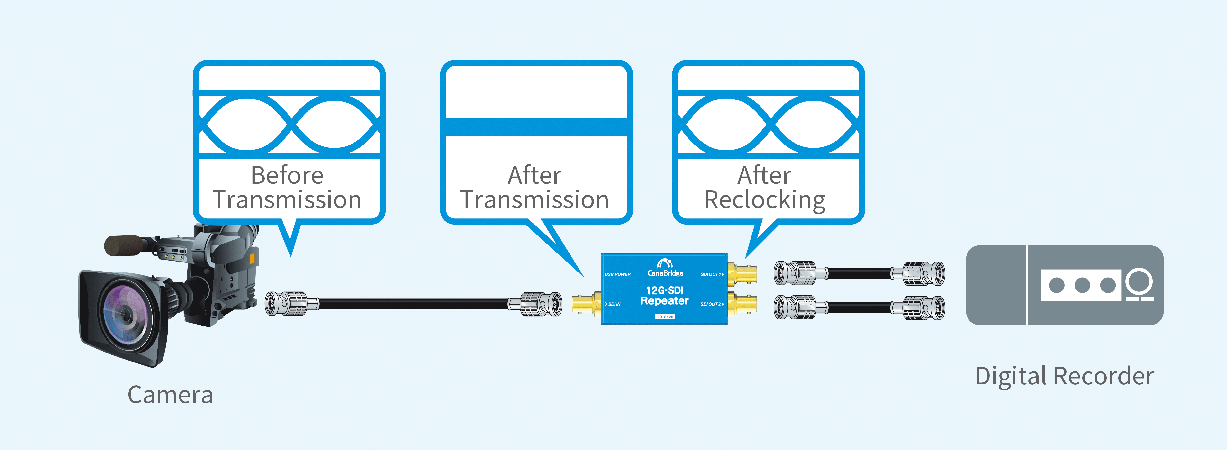

Typical application
CB-8120 is ideal for use in broadcast and video production facilities, command and control centers, medical imaging facilities, and other applications.
Typical application
