3G-SDI Fiber Optic Extender

CB-1010-TX / RX

The CB-1010 3G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting single-mode LC simplex fiber extending up to 20km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 1080p with audio and metadata,also supports level A and level B. It features a local SDI loop out and dual SDI outputs and supports 3G/HD/SD-SDI signals.
Multimode fiber can also be used but for shorter distances.
Features & Benefits
  • 20km transmission distance
  • Support 3Gbit Level A and Level B (all formats)
  • SFP/LC Fiber transmitter & receiver
  • SDI equalization and re-clocking
  • 3G-SDI input & loopout on transmitter
  • Dual 3G-SDI outputs on receiver
  • SDI input automatic switching SD, HD & 3G
  • USB power supply
  • Equalized on the SDI input and recloking on the SDI outputs to maximize performance up to 120m for 3G and 140m for HD-SDI. It ensures transmission quality and effect of eye diagram, and fully compatible with 3G level A & level B formats.
Technical Information
Connections Transmitter SDI Video Input 1×SD/HD/3G-SDI (75Ω BNC)
Transmitter SDI Loop Output 1×SD/HD/3G-SDI (75Ω BNC)
Transmitter Fiber Optical Output SFP module with LC connector
Receiver Fiber Optical Input SFP module with LC connector
Receiver SDI Video Output 2×SD/HD/3G-SDI (75Ω BNC)
Micro USB Power and software update
Power LED Indicator Power and signal status
Functions and Standards SDI Video Rate SD/HD/3G-SDI
SDI Standard SMPTE ST 259
SMPTE ST 292-1
SDI Auto Switching Automatically detects SD, HD and 3G-SDI
SDI Equalization and Re-clocking Yes, SDI Input and output maximize performance up to 120m for 3G-SDI
SDI Audio Supports 16-channel embedded
Optical Specifications Connector LC
Fiber type Single-mode
Wavelength 1310nm
Output power -6 - 0dBm
Receiver sensitivity -15dBm (Max)
Power Power Micro USB
Power Consumption 1.5W (Max)
Voltage Range USB 3.3-5.5V
Physical Specifications Dimension 72.4×41×24.6mm
Net Weight Transmitter: 115g, Receiver: 115g
Gross Weight 750g
Environmental Specifications Operating Temperature 0~40 deg C
Storage Temperature -10~70 deg C
Relative Humidity 0%~90% non-condensing

*Information in this document is subject to change without notice.

Related Products
Typical application

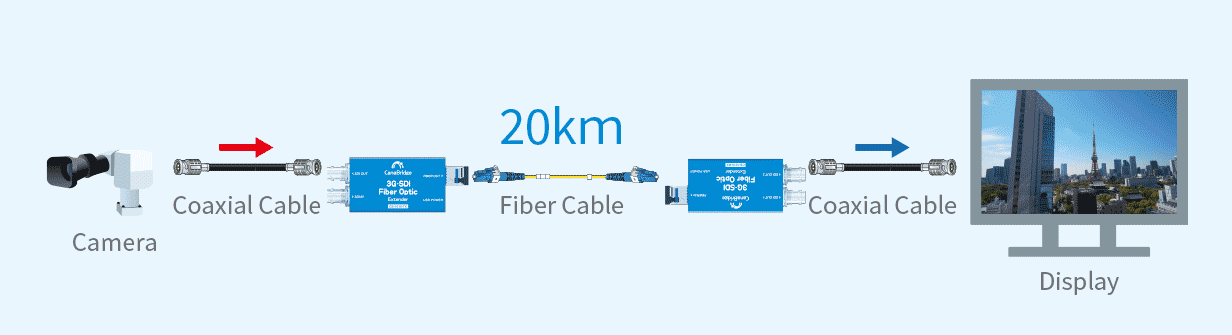

CB-1010 Fiber Optic Extender is a transmitter/receiver set supporting singlemode LC simplex fiber extensions up to 20km, in resolutions up to 1080p with audio and metadata.
